STONE 5 Inch GUI Designable TFT LCD panel screen display module

FOB Reference Price:Get Latest Price
$20.00 - $200.00 / Piece | 1 Piece/Pieces (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Beijing, China
Brand Name:
STONE
Model Number:
STVA050WT-03
Type:
TFT
Product Name:
Display Screen Panel Module
Size:
5 Inch
Resolution:
800*480
Viewing Angle:
108 mm * 64.8 mm
Brightness:
1000 cd/m2
Backlight life:
500,00 hours
Working Temperature:
-20°C ~ +70°C
CPU:
CortexM4
Picture Switching Speed:
40 ms/picture (25 pictures/s)
Interface:
RS232/ USB Interface
Supply Ability
Supply Ability:
90000 Piece/Pieces per Month industrial screen
Packaging & Delivery
Packaging Details
Antistatic Bag + Foam Box + Cardboard Carton
Port
Beijing
Lead Time :
7 days
Video Description

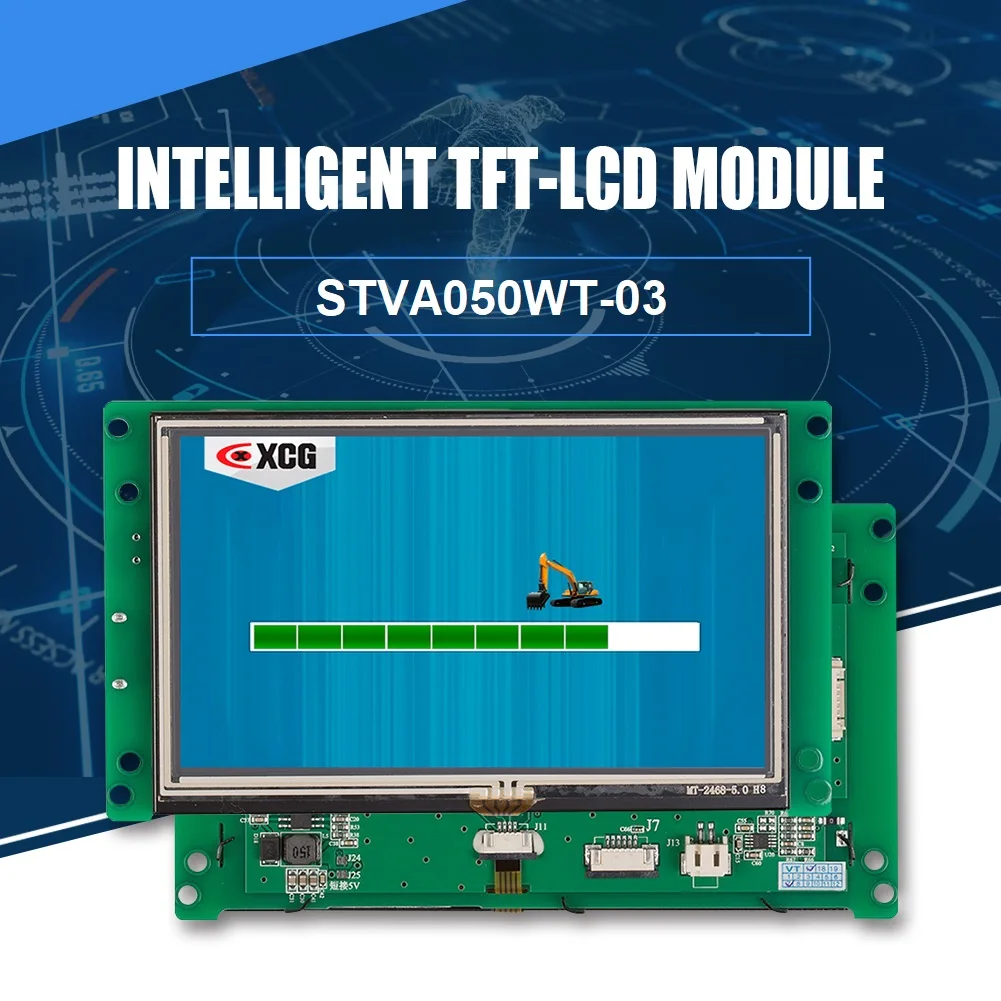

STONE 5 Inch GUI Designable TFT LCD panel screen display module



STVA050WT-03

Product Description







STVA050WT-03



The STVA050WT-03 is the intelligent TFT LCD Module with UART PORT which can be controlled by ANY MCU via Simple Powerful Command Set. So it can be used as colourful TFT Display & Touch controller in various electronic equipment.



The STVA050WT-03 include CPU , TFT Driver,Flash Memory,UART port,power supply and so on,the important is that it has the ready-made Basic Control Program and Powerful Design Software,so that it can reduce much development time and cost for engineers.


Product Parameters



Physical Parameter

Model

STVA050WT-03

Size (Inch)

5.0 inch

Resolution

800×RGB×480

Color

65536 colors (16 bit)

Viewing Area

108mm× 64.8mm

Pixel Spacing

 0.1905 mm × 0.0635 mm(H×V)

Overall Dimension

140 mm × 80.9 mm × 15.1 mm(N)/16.4 mm(T)

Net Weight

195 g(N)/ 200 g(T)

 TFT Panel

A+ Class Industry Panel

Touch Screen

Industry Level 4 wire resistance
Or without touch screen is optional.

Backlight Parameter

Backlight Type

LED

Brightness

800 cd/m2(Brightness can be adjustable in 100 levels.)

Contrast

500:1

Backlight life

50,000 hours

Viewing Angle

70°/ 70°/ 50°/ 70°(L/R/U/D)

Working Temperature

-20°C ~ +70°C

Working Humidity

55°C, 85%

Storage Temperature

-30°C ~ +80°C

Screen Mode

Digital

Performance Parameter

CPU

CortexM4

LCD Controller

CPLD EPM240

Refresh Rate

200MHz

Picture Switching Speed

40 ms/picture (25 pictures/s)

Flash Memory

Standard 128m, Extension 1GB

Memory Amount for picture

According to the capability of the image, Suggest "JPG" format.

Interface

RS232/ USB Interface

Image downloading

USB2.0 (12Mbps) & U storage Disk downloading

Voltage Range

DC6.0V ~ 40V (typical value: 12V)

Power

2.4W

Test Report

MTBF

4,250,000H

Working Temperature

-20°C ~ +70°C

 Air Humidity

60°C, 90%

Continuous Vibration Testing

10-55Hz, 1.5mm, 10G

 Impact Acceleration Testing

6ms, 100G

ESD Testing

10KV

Radiation Reliability Testing

44W
