4.3 Inch LCD TFT Monitor RS232 Controller Driver Board Touch Screen Kit

FOB Reference Price:Get Latest Price
$55.00 - $200.00 / Piece | 1 Piece/Pieces (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Beijing, China
Brand Name:
STONE
Model Number:
STA043WT/N-01
Type:
TFT
Display Scale:
16:9
Resolution:
480*RGB*272
Colors:
65536 colors (16 bit)
4:3:
RS232/RS485/TTL/USB
320*RGB*240:
Cortex
65536 colors (16 bit):
Standard 128m, Extension 1GB
Backlight:
LED
Voltage:
DC4.5V ~ 42V (typical value: 12V)
Standard 128m, Extension 1GB:
800 cd/m2(Brightness can be adjustable in 100 levels.)
Viewing Angle:
70°/ 70°/ 50°/ 70°(L/R/U/D)
Supply Ability
Supply Ability:
90000 Piece/Pieces per Month 4.3 Inch LCD TFT Monitor RS232 Controller Driver Board Touch Scr
Packaging & Delivery
Packaging Details
Antistatic Bag + Foam Box + Cardboard Carton
Port
Beijing
Lead Time :
7-14 days

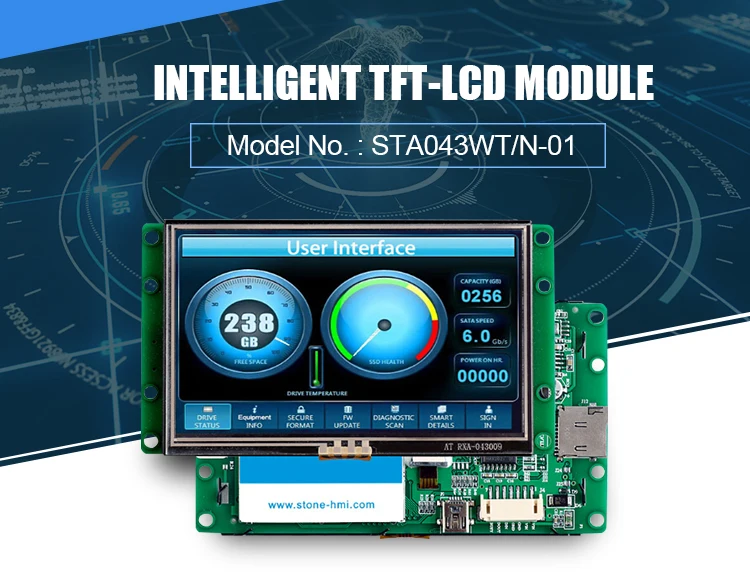

4.3 Inch LCD TFT Monitor RS232 Controller Driver Board Touch Screen Kit

STA043-01

Product Description

 STA043-02STA043-03

Product Parameters

 STA043-04

Physical Parameter

Model

STA043WT/N-01

Size (Inch)

4.3"

Resolution

480×RGB×272

Color

65536 colors (16 bit)

Viewing Area

95 mm × 53.9 mm

Pixel Spacing

0.1905 mm × 0.0635 mm(H×V)

Overall Dimension

120.4 mm × 68.6 mm × 12.3 mm(N)/13.9 mm(T)

Net Weight

 115g(N)/ 155g(T)

 TFT Panel

A+Class Industry Panel

Touch Screen

Industry Level 4 wire resistance
Or without touch screen is optional.

Backlight Parameter

Backlight Type

LED

Brightness

800cd/m2(Brightness can be adjustable in 100 levels.)

Contrast

500:1

Backlight life

50,000 hours

Viewing Angle

70°/ 70°/ 50°/ 70° (L/R/U/D)

Working Temperature

-30°C ~ +70°C(-30°C ~ +80°C)

Working Humidity

55°C, 85%

Storage Temperature

-30°C ~ +85°C

Screen Mode

Digital

Performance Parameter

CPU

CortexM3 STM32F103

LCD Controller

CPLD EPM240

Refresh Rate

60Hz

Picture Switching Speed

19 ms/picture (53 pictures/s)

Flash Memory

Standard 128m, Extension 1GB

Memory Amount for picture

416 images

Interface

 RS232/ RS485/ TTL UART Interface

Pictures downloading

MiniUSB2.0 (12Mbps) & TF card

Voltage Range

DC4.5V ~ 42V (typical value: 12V)

Power

2W

Test Report

MTBF

 4,250,000H

Working Temperature

-30°C ~ +80°C

 Air Humidity

 60°C, 90%

Continuous Vibration Testing

10-55Hz, 1.5mm, 10G

 Impact Acceleration Testing

6ms, 100G

ESD Testing

10KV

Radiation Reliability Testing

44W
